Setting Up a Web Filtering Server with Unbound and RPZ on Linux

Last updated: Jun 21, 2025

I was looking for a reliable way to implement web filtering on GNU/Linux. While tools like SquidGuard can be used for this purpose, I found them overly complex to configure and difficult to deploy automatically across multiple workstations, especially in environments not managed by an Active Directory domain. During my research, I discovered the DynFi Open Source firewall (https://dynfi.com), which offers web filtering capabilities using RPZ (Response Policy Zone) — https://en.wikipedia.org/. This led me to explore RPZ-based filtering further and develop a working solution using Unbound and RPZ on Linux.

This solution provides the following features:
- Blocks access to a predefined list of forbidden websites
- Redirects users to a custom block page when access is denied

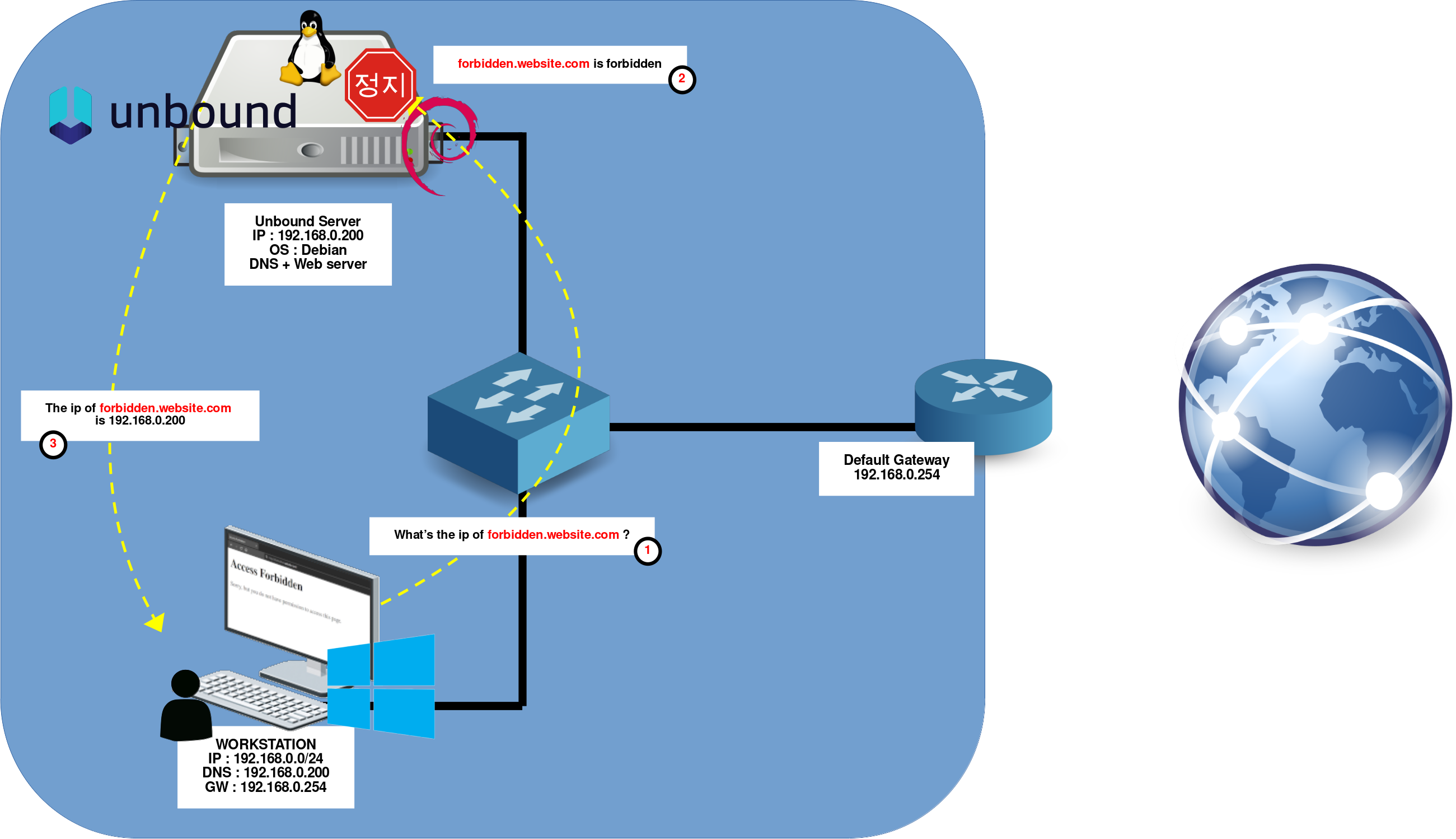

Network Diagram

In this setup, a Debian server functions as both a DNS resolver and a web server. When a client attempts to access a forbidden website (based on a predefined block list), the request is intercepted and redirected to the web server, which displays a custom blocked access page in the user's browser.

Prerequisites:
- Block port 53 (both UDP and TCP) on your gateway to prevent workstations from using external DNS servers directly.

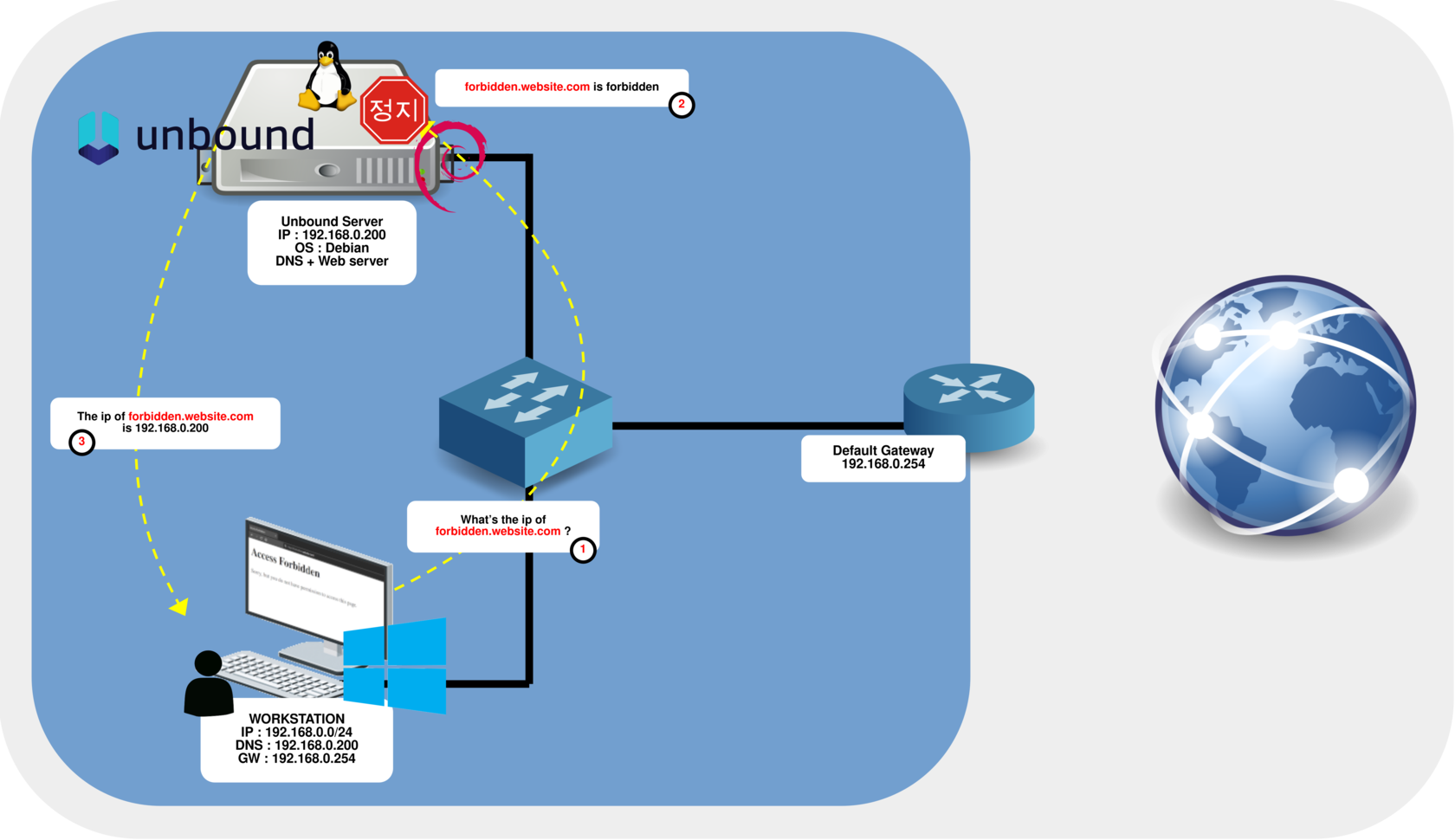

Network diagram illustrating a blocked web request from a workstation to an Unbound DNS server

Debian Server

As outlined above, our Debian server will run two key services: a web server to display a notification page when users attempt to access blocked websites, and a DNS resolver to deliver either standard or modified DNS responses based on filtering rules. To meet these requirements, we'll use micro-httpd, a lightweight and minimalist HTTP server, and Unbound as the DNS resolver supporting RPZ-based filtering.

micro-httpd

To notify users when access to a website is blocked, we need a lightweight web server capable of serving a simple "access forbidden" page. For this purpose, we'll use micro-httpd, which is minimal yet sufficient for displaying static messages.

Installation

Install the micro-httpd package:

root@host:~# apt install micro-httpd

Configuration

The micro-httpd systemd service configuration is located in /lib/systemd/system/micro-httpd@.service:

[Unit]
Description=micro-httpd
Documentation=man:micro-httpd(8)

[Service]
User=nobody
Group=www-data
ExecStart=-/usr/sbin/micro-httpd /var/www/html
StandardInput=socket

The socket configuration is defined in the file /lib/systemd/system/micro-httpd.socket:

[Unit]
Description=micro-httpd
Documentation=man:micro-httpd(8)

[Socket]
ListenStream=0.0.0.0:80
Accept=true

[Install]
WantedBy=sockets.target

Create a simple HTML file at /var/www/html/index.html to serve as the block page:

<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <title>Access Forbidden</title>
</head>
<body>
  <h1>Access Forbidden</h1>
  <p>Sorry, but you do not have permission to access this page.</p>
</body>
</html>

root@host:~# chown -R www-data:www-data /var/www/html

If needed, you can use the systemctl command to restart the micro-httpd socket:

root@host:~# systemctl restart micro-httpd.socket

Open a web browser and navigate to http://192.168.0.200/ to verify that the block page is being displayed correctly.

Unbound

Installation

Install the unbound package:

root@host:~# apt install unbound

Configuration

Create the configuration file /etc/unbound/unbound.conf.d/rpz.conf with the following content:

server:
    module-config: "respip validator iterator"  # Load respip, validator, and iterator modules. Needed for rpz
    interface: 192.168.0.200  # Network interface used for DNS queries
    interface: 127.0.0.1  # Loopback interface used for local DNS queries
    do-ip4: yes  # Enable IPv4 support
    do-ip6: no  # Disable IPv6 support
    do-udp: yes  # Enable UDP support for DNS queries
    do-tcp: yes  # Enable TCP support for DNS queries
    do-daemonize: yes  # Run Unbound as a daemon (in the background)
    access-control: 0.0.0.0/0 allow  # Allow all IP addresses to make DNS queries
    local-zone: "std.priv." static  # Define a local zone for DNS queries
    local-data: "denied.std.priv. IN A 192.168.0.200"  # Define a local DNS entry for a specific domain
    local-data-ptr: "192.168.0.200 denied.std.priv."  # Define a local DNS PTR entry for a specific IP address

rpz:
    name: rpz.std.rocks  # RPZ zone name
    zonefile: /etc/unbound/blacklist.zone  # RPZ zone file used for DNS query filtering

Create the file /etc/unbound/blacklist.zone. For testing purposes, we'll redirect all DNS requests for orange.fr and google.fr to our block page IP:

*.orange.fr IN A 192.168.0.200
*.google.fr IN A 192.168.0.200

Restart the unbound service to apply the changes:

root@host:~# systemctl restart unbound

Workstation

From your workstation, open a web browser and try accessing www.google.fr. You should be redirected to the custom block page:

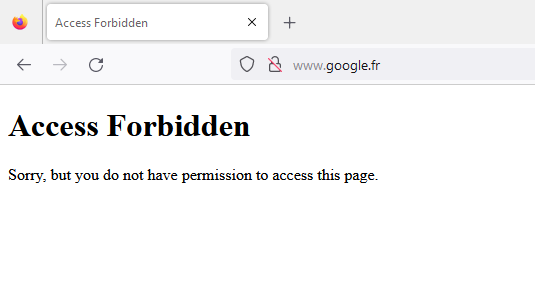

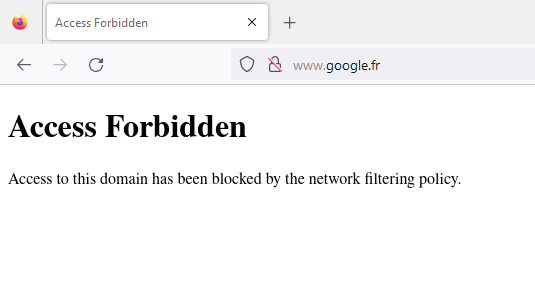

Screenshot of Firefox browser displaying 'Access Forbidden' page

You can also verify DNS redirection using nslookup or a similar tool. Both www.google.fr and orange.fr should resolve to 192.168.0.200:

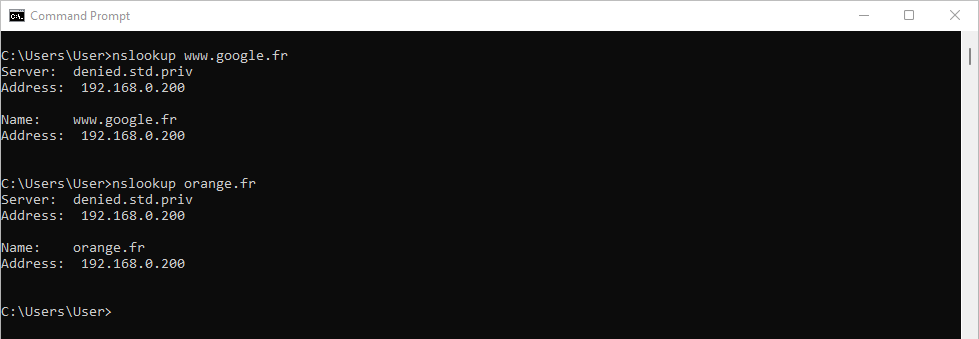

Screenshot of Windows Command Prompt showing DNS resolution to 192.168.0.200

Downloading and Applying a Block List

Now that the web filtering system is in place, we can make it truly effective by applying a real-world block list. Numerous public RPZ lists are available online. For this example, we’ll use one from the Hagezi project: https://github.com/hagezi/dns-blocklists.

These RPZ lists typically use the following format:

website.to.block CNAME .

For compatibility with our setup, the entries must be converted to this format:

website.to.block IN A 192.168.0.200

So, how do we translate the default format into a format that is useful in our architecture, as shown above? There are various approaches, but personally, I'll be using the sed editor. Let's see how it's done!

First, download one of the RPZ lists:

root@host:~# wget https://raw.githubusercontent.com/hagezi/dns-blocklists/main/rpz/multi.txt

Then convert the list into the required format, with the sed stream editor:

root@host:~# sed -i 's/CNAME.*/IN A 192.168.0.200/' multi.txt

Note: To prevent users from circumventing DNS filtering, it's highly recommended to also block DoH (DNS-over-HTTPS), VPN, TOR, and proxy endpoints. You can find a list of public DoH IPs here: https://github.com/crypt0rr/public-doh-servers.

Go Further

To make the filtering system more flexible, you can use access control to apply different RPZ policies to specific networks or individual hosts. This allows for differentiated filtering levels based on IP ranges.

Edit the configuration file /etc/unbound/unbound.conf.d/rpz.conf to define tagged access controls and associate them with specific RPZ zones:

server:
    module-config: "respip validator iterator"  # Load respip, validator, and iterator modules
    interface: 192.168.0.200  # Network interface used for DNS queries
    interface: 127.0.0.1  # Loopback interface used for local DNS queries
    do-ip4: yes  # Enable IPv4 support
    do-ip6: no  # Disable IPv6 support
    do-udp: yes  # Enable UDP support for DNS queries
    do-tcp: yes  # Enable TCP support for DNS queries
    do-daemonize: yes  # Run Unbound as a daemon (in the background)
    access-control: 0.0.0.0/0 allow  # Allow all IP addresses to make DNS queries
    local-zone: "std.priv." static  # Define a local zone for DNS queries
    local-data: "denied.std.priv. IN A 192.168.0.200"  # Define a local DNS entry for a specific domain
    local-data-ptr: "192.168.0.200 denied.std.priv."  # Define a local DNS PTR entry for a specific IP address

    define-tag: "social adult dnsbypass"
    access-control-tag: 192.168.10.0/24 "social adult dnsbypass"
    access-control-tag: 192.168.10.200/32 "social adult"
    access-control-tag: 192.168.20.0/24 "adult dnsbypass"

rpz:
    name: rpz.social.std.rocks  # RPZ zone name
    zonefile: /var/lib/unbound/social_networks/blacklist.zone
    tags: "social"

rpz:
    name: rpz.adult.std.rocks  # RPZ zone name
    zonefile: /var/lib/unbound/adult/blacklist.zone
    tags: "adult"

rpz:
    name: rpz.dnsbypass.std.rocks  # RPZ zone name
    zonefile: /var/lib/unbound/dns_bypass/blacklist.zone
    tags: "dnsbypass"

In this example:

The subnet 192.168.10.0/24 receives all three filters: social, adult, and dnsbypass.
The specific host 192.168.10.200 is assigned only social and adult filters.
The subnet 192.168.20.0/24 receives adult and dnsbypass filters.

This modular approach allows precise control over what is filtered for each segment of your network.

Troubleshooting

When using RPZ lists containing hundreds of thousands of entries, the Unbound service may fail to start. This is usually due to the service taking too long to load the configuration and being automatically stopped by systemd due to a timeout.

Example of the error message when starting Unbound:

root@host:~# systemctl restart unbound
Job for unbound.service failed because a timeout was exceeded.
See "systemctl status unbound.service" and "journalctl -xeu unbound.service" for details.

(Optional) Set your preferred text editor. For example, to use vim:

root@host:~# export EDITOR=vim

Edit the unbound.service override configuration:

root@host:~# systemctl edit unbound.service

Add the following lines to increase the startup and shutdown timeout limits:

### Editing /etc/systemd/system/unbound.service.d/override.conf
### Anything between here and the comment below will become the new contents of the file

[Service]
TimeoutStartSec=300
TimeoutStopSec=300

### Lines below this comment will be discarded

### /lib/systemd/system/unbound.service
# [Unit]
# Description=Unbound DNS server
# Documentation=man:unbound(8)
# After=network.target
# Before=nss-lookup.target
# Wants=nss-lookup.target
#
# [Service]
# Type=notify
# Restart=on-failure
# EnvironmentFile=-/etc/default/unbound
# ExecStartPre=-/usr/libexec/unbound-helper chroot_setup
# ExecStartPre=-/usr/libexec/unbound-helper root_trust_anchor_update
# ExecStart=/usr/sbin/unbound -d -p $DAEMON_OPTS
# ExecStopPost=-/usr/libexec/unbound-helper chroot_teardown
# ExecReload=+/bin/kill -HUP $MAINPID
#
# [Install]
# WantedBy=multi-user.target

The unbound service should now be able to start without error:

root@host:~# systemctl restart unbound
