Obtain and Configure SSL Certificates for Linux Web Servers in an AD CS Environment

Generating a Certificate Signing Request (CSR)

• From the Debian server, create an openssl-san.cnf file, example here with a web server named webserver.std.local which has the following IP address: 192.168.1.200. Note the different alternative names, corresponding to the different urls that users can use to access the website:

[ req ]
default_bits = 4096
prompt = no
default_md = sha512
distinguished_name = dn
req_extensions = req_ext

[ dn ]
CN = webserver.std.local

[ req_ext ]
subjectAltName = @alt_names

[ alt_names ]
DNS.1 = webserver.std.local
DNS.2 = webserver
DNS.3 = www.webserver
DNS.4 = www.webserver.std.local
IP.1 = 192.168.1.200

• Next, use the openssl command to generate a private key and a certificate signing request for our ADCS:

user@webserver:~$ openssl req -new -nodes -keyout webserver.std.local.key -out webserver.std.local.csr -config openssl-san.cnf

• Copy the csr file to /tmp/ for later retrieval from the AD CS server:

user@webserver:~$ cp webserver.std.local.csr /tmp/

Requesting a Certificate from Windows AD CS

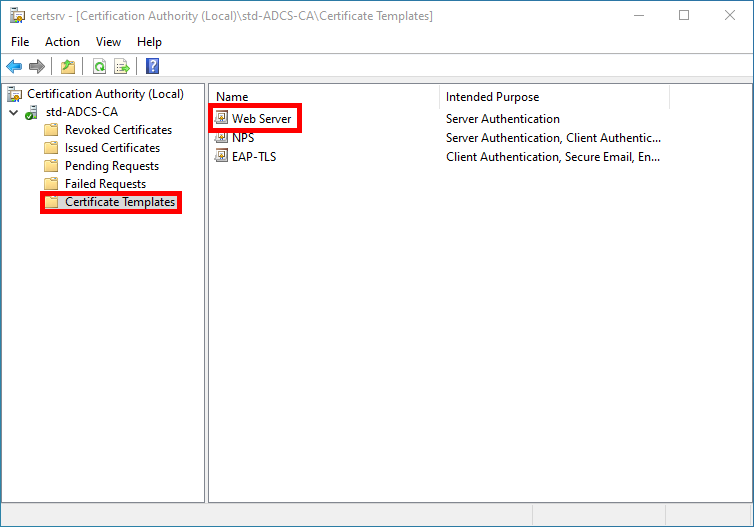

• From the AD CS server, open the Certificate Templates Settings console, and make sure you have the Web Server template:

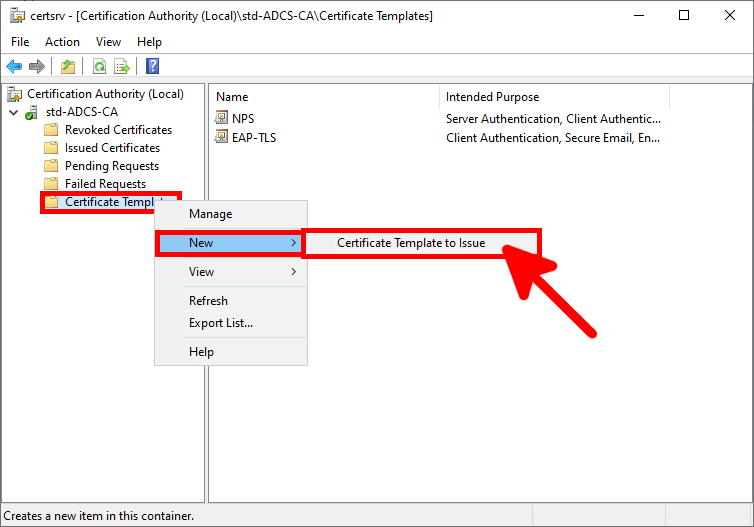

• If not, right-click on Certificate Templates and click on Certificate Template to Issue:

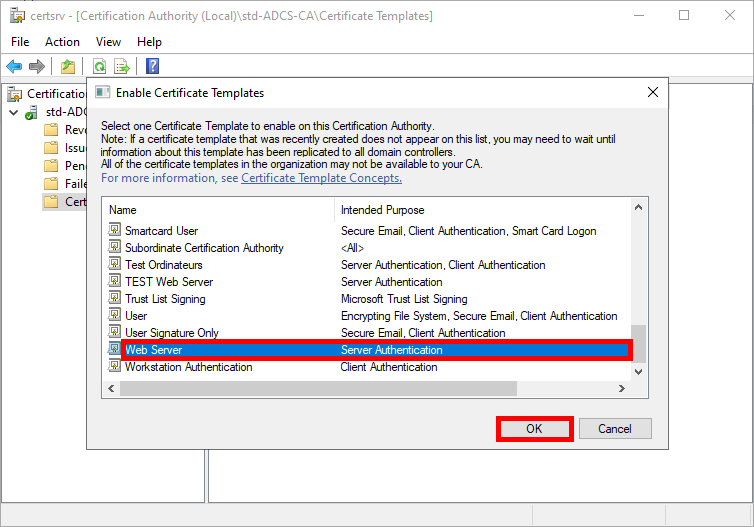

• Select the Web Server template, and click on OK:

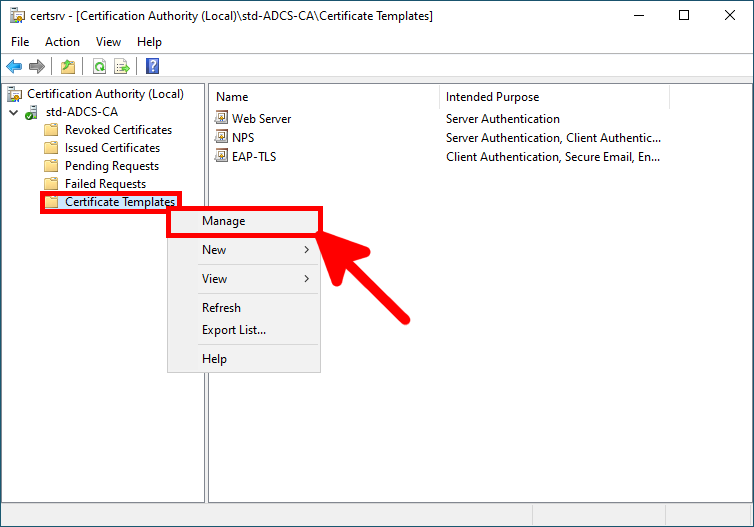

• Now right-click on Certificate Templates, and click on Manage:

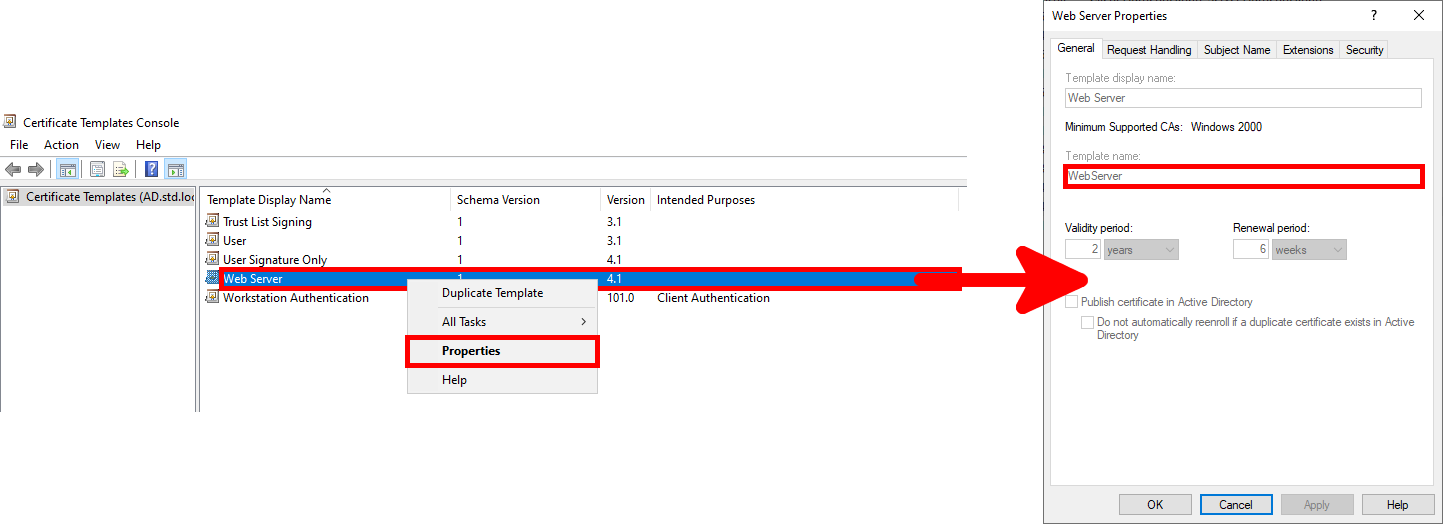

• In the Certificate Templates console, right-click on Web Server, and note the name of the template, which will be used later with the certreq command:

• Copy the certificate signing request file from the web server, for example here with a PowerShell command:

PS > scp user@192.168.1.200:/tmp/webserver.std.local.csr .

• From a PowerShell console, request a certificate to the AD CS certification authority:

PS > certreq -submit -attrib "CertificateTemplate:webserver" .\webserver.std.local.csr webserver.std.local.cer

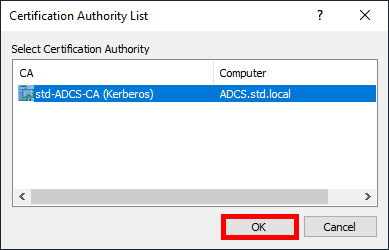

• A Certification Authority List window should appear, click on OK:

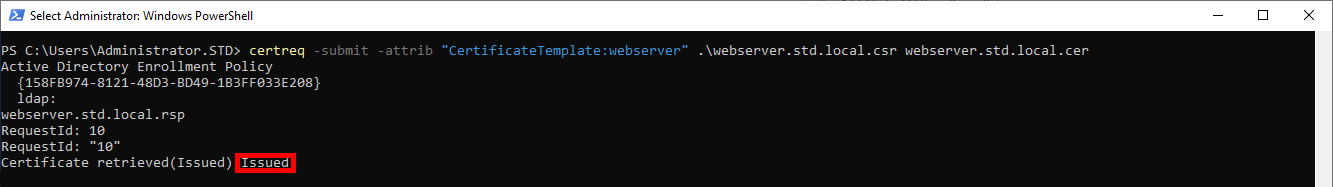

• If everything goes well, the Issued message should appear indicating that the certificate has been issued in the current directory:

• Copy the cer certificate to the Linux Web Server, for example here with a PowerShell command that copies it to the web server's /tmp directory:

PS > scp webserver.std.local.cer user@192.168.1.200:/tmp/

Installing the Issued Certificate on an Apache Web Server

• Connect to your Linux web server and copy the SSL certificates into these folders (note that the cer file has been renamed to pem):

root@webserver:~# cp /tmp/webserver.std.local.cer /etc/ssl/certs/webserver.std.local.pem

root@webserver:~# cp /home/user/webserver.std.local.key /etc/ssl/private/webserver.std.local.key

• Edit the configuration file of your https Apache2 site, for example here the file /etc/apache2/sites-enabled/default-ssl.conf:

#   A self-signed (snakeoil) certificate can be created by installing
#   the ssl-cert package. See
#   /usr/share/doc/apache2/README.Debian.gz for more info.
#   If both key and certificate are stored in the same file, only the
#   SSLCertificateFile directive is needed.
SSLCertificateFile      /etc/ssl/certs/webserver.std.local.pem
SSLCertificateKeyFile   /etc/ssl/private/webserver.std.local.key

• Reload the Apache2 service:

root@webserver:~# systemctl reload apache2.service

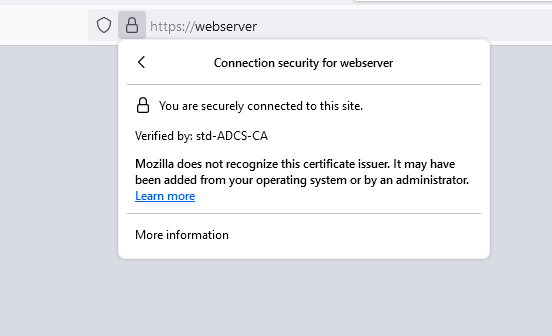

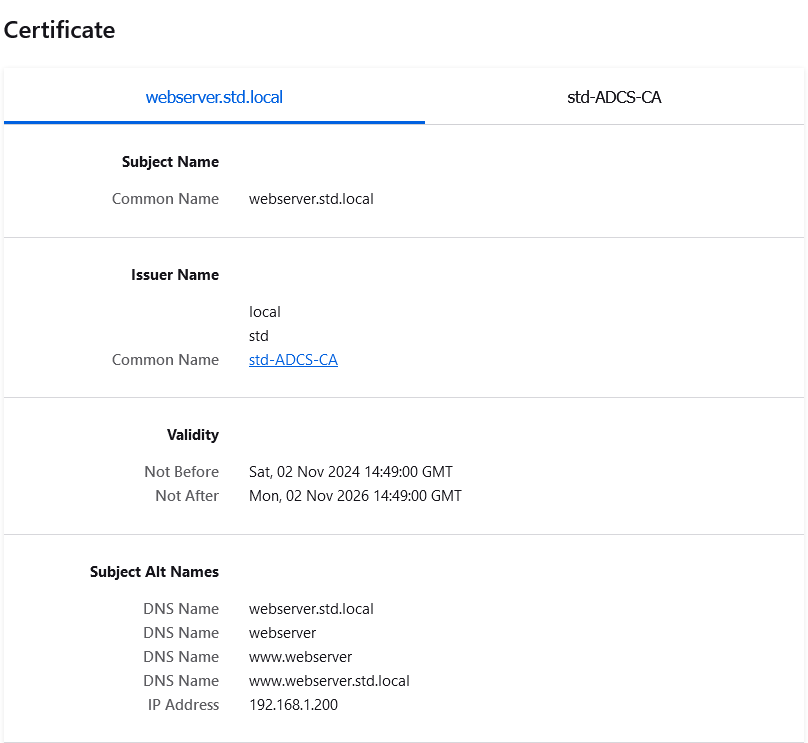

• From a machine in the domain, open a web browser and connect to the web server url (https://webserver for example). You should no longer see the warning. From the web browser, you can check the certificate properties:
